Off-Grid CIM-2500N Twin Pack |
|
|
| |
|
|
| |
|
|
| |
 |
- Pure Sinewave AC Output
- For Lights, Fans, TV, PC, Battery Chargers, Refrigerators, Food Processors, Small Appliances, etc.
- Smart with AC Load Protection
- Total of 8 DC Input Channels
- MPPT for Each Solar Panel
- Over Discharge Protection for 48V Lead-Acid Batteries
- Solar or Battery Auto-Detection
- High Efficiency and Long Life
- Made in U.S.A.
|
|
| |
|
|
| |

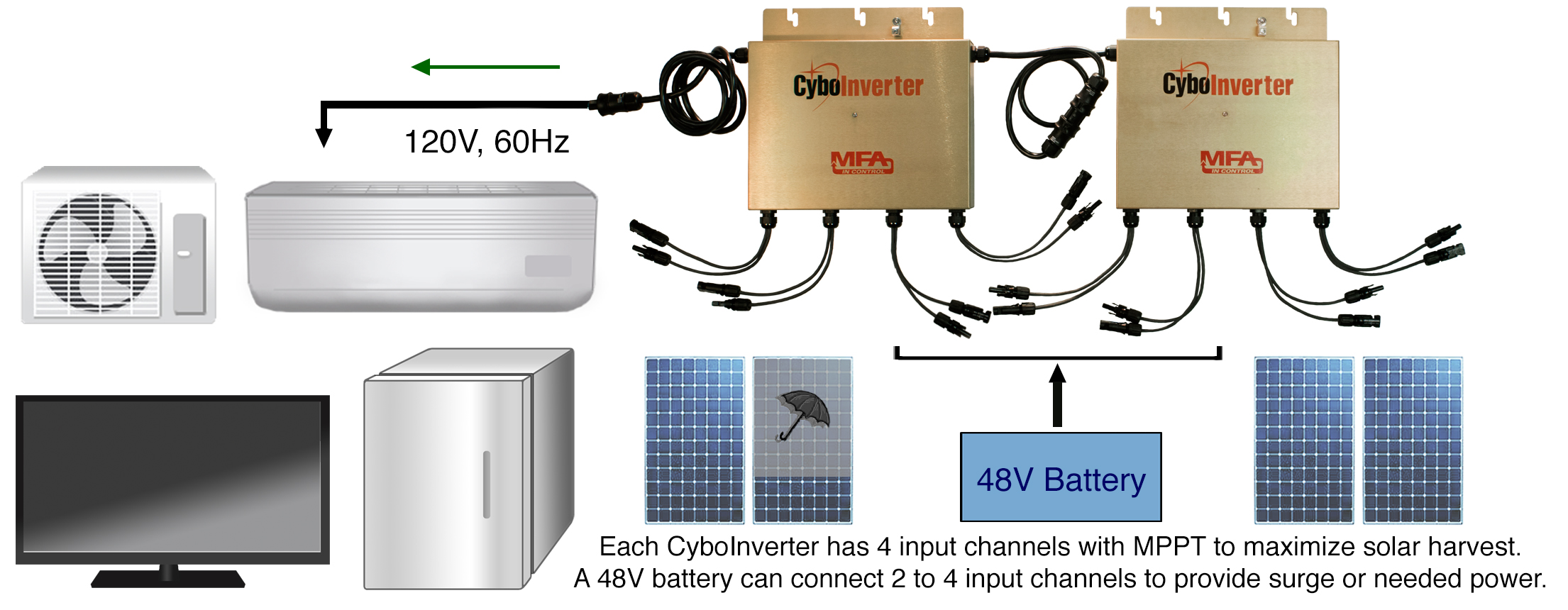

A Master (N1) and Slave (N2) off-grid CyboInverter can daisy-chain and work in harsh environments. The system can produce up to 2500W, 120V, 60Hz AC to power AC loads. All input channels can connect to solar panels or batteries. Each 48V battery can connect to 1, 2, 3, or 4 channels in parallel.
Key Benefits: When there is sufficient solar power to run the loads, the CyboInverters will not pull power from the battery. This ensures a much longer battery life. |
|
| |
|
|
| |
 |
|
| |
|
|
| |
Part No: CIM-2500N with Daisy-Chained CyboInverter N1 and N2. |
|
| |
|
|
| |
*WARNING: Never connect the Off-Grid CyboInverter to the AC grid. Doing so will damage the units and void the warranty. |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
