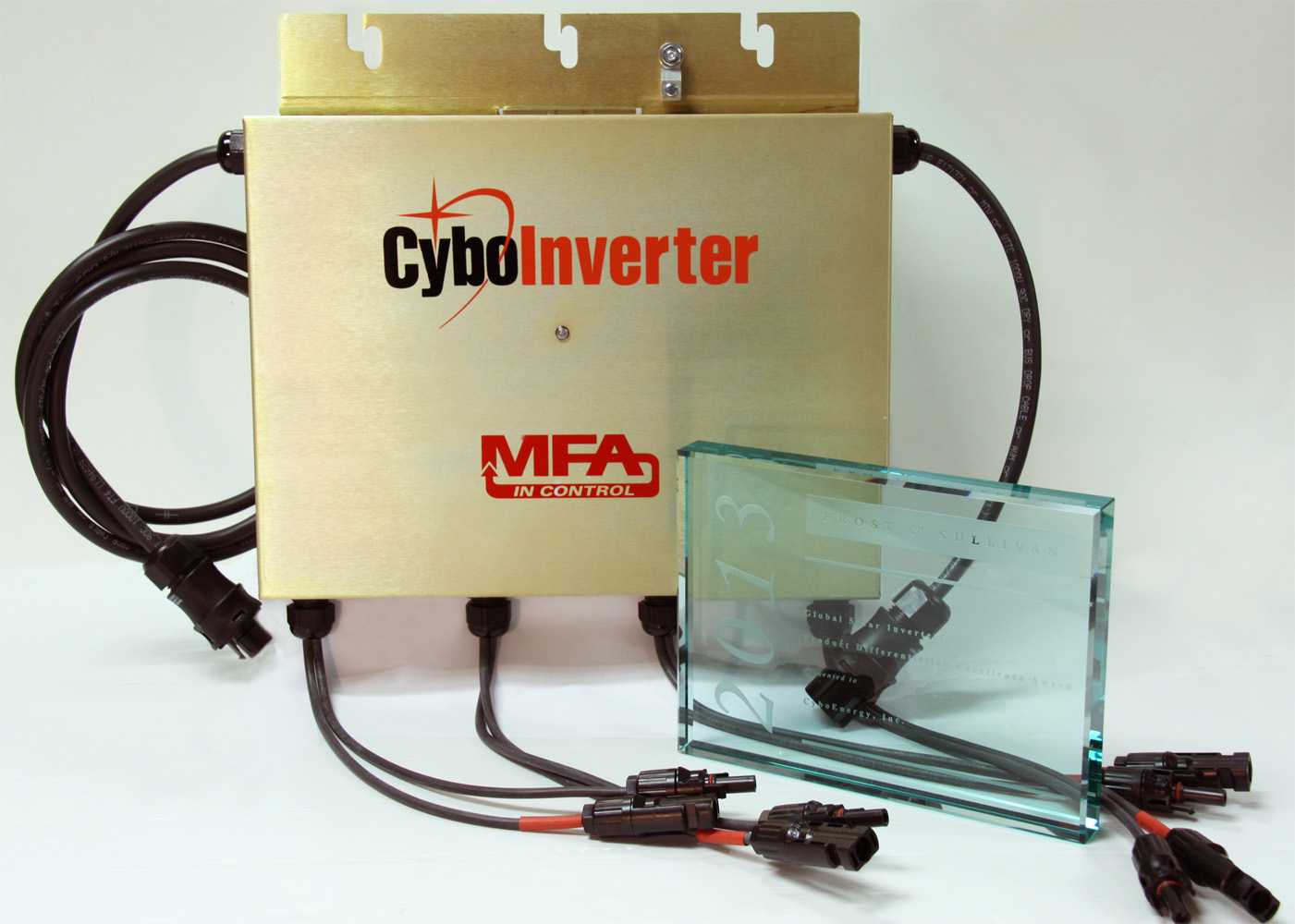

In solar power systems, solar panels and inverters work together to collect solar energy and convert it into usable electricity. CyboInverter is a patented, award-winning solar power Mini-Inverter possessing key merits of both Central Inverters and Microinverters. CyboEnergy offers on-grid, off-grid, on/off-grid, and dual-output off-grid CyboInverters with installations around the world. CyboEnergy received the Frost & Sullivan's 2013 Global Product Differentiation Excellence Award in Solar Inverters, and Frost & Sullivan's 2017 Global Solar Inverter Technology Innovation Award. The AC Assisted Off-Grid CyboInverters have been selected as 2020 Top Solar Inverter Products by Solar Power World Magazine.
CyboInverters are patented, UL1741 certified, NEMA 6 rated, and made in the USA. CyboEnergy has a patent portfolio to protect the unique multiple input channel design that enables seamless integration of DC sources including solar, battery, wind, hydro-generator, and fuel-cell. The product family also offers AC flexibility with AC assisted off-grid, on-grid, off-grid, on/off-grid, off-grid for PV heating, and dual-output off-grid CyboInverters that cover a broad range of solar applications.
The following table shows 7 types of CyboInverters and their identified special application areas.
| Type |
US Model |
Special Applications |
| AC Assisted Off-Grid |
CIM-1200Na, Ya |
Take major loads off the grid. Run IAC, central A/C, pool pumps, EV chargers, etc. |
Off-Grid for Electric
Water Heaters |
CIM-1200H |
Off-grid PV solar water heating, area heating, and solar cooking. |
| Dual-Output Off-Grid |
CIM-1200H/N |
Off-grid PV water heating with backup power when grid is down, Off-grid heating and cooling. Ideal for cottage homes, cabins, RVs. |
| On-Grid |
CI-Mini-1000A |
Battery-backup, Peak power shaving, BIPV. |
| Off-Grid |
CIM-1200N
CIM-2500N
CIM-5000Y |
Battery-less Microgrids for indoor gardens and growing facilities, Mobile microgrids, Water pumping, EV and eBike charging. |
| On/Off-Grid |
CIM-1200A/N |
Send power to grid and have backup power when the grid is down. |
| On/Off-Grid for Electric Water Heaters |
CIM-1200A/H |
Send extra power to the grid when the water reaches its setpoint, or have hot water when grid is down. |
Click here to download Inverter Spec Sheets.

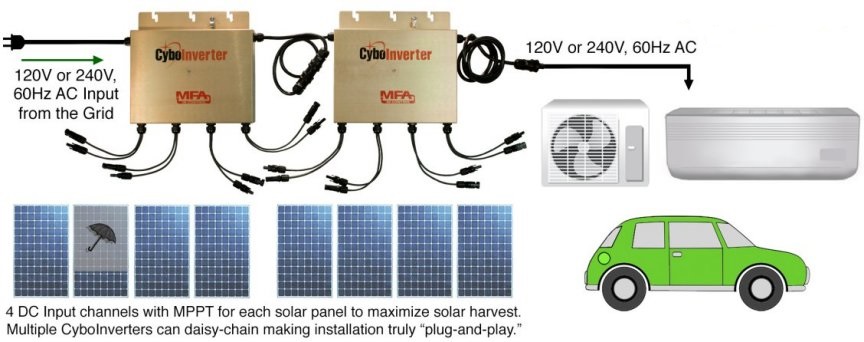

AC Assist Off-Grid CyboInverter
It is a game-changing product that allows battery-less off-grid solar systems to start and run heavy loads 24/7 with consistent performance under DC and load variations, taking major loads off the grid and avoiding headaches of on-grid solar systems.
Off-Grid CyboInverter H Model
Instead of using batteries, why not use solar PV water heating to store energy in the form of hot water? The Off-Grid CyboInverter H model and its twin pack enable off-grid PV water heating that has a rapid growing demand. Packaged PV water heating systems with OG-300 certifications are available through CyboEnergy's strategic partners.
Dual-Output Off-Grid CyboInverter

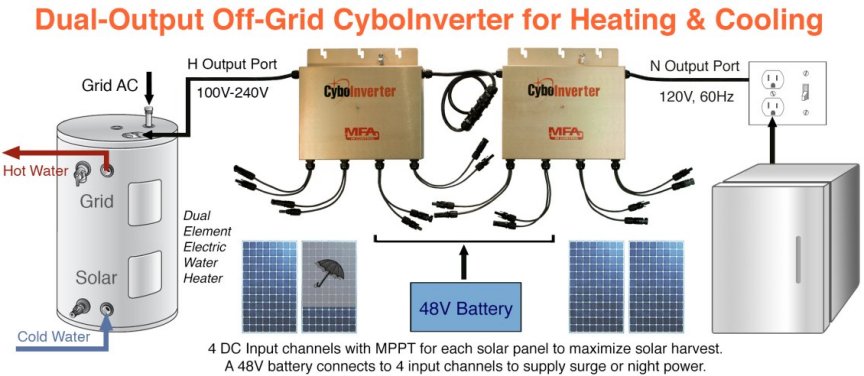

The Dual-Output Off-Grid CyboInverter has 2 off-grid output ports, which can run different types of AC loads. The most popular model, CIM-1200H/N, is well suited in two unique applications: (1) Off-grid PV water heating just like an H model. When the grid is down in the house, the off-grid system can be switched over to run critical AC loads through the N output port. (2) For off-grid heating, cooling, and refrigeration as shown in the graph below.
On-Grid CyboInverter
Compared with microinverters and string inverters, the On-Grid CyboInverter offers seamless integration of solar panels and batteries with its multiple input channels. A 48V lead-acid battery or a 24V to 55V Lithium battery can connect to one or multiple input channels of a CyboInverter for peak power shaving. This has become an important feature that the customers want in areas where peak time electric rates are several times higher than the rates in off-peak times.
Off-Grid CyboInverters
CyboEnergy offers 10 off-grid CyboInverters based on specific electrical standards to serve the global market. Most off-grid solar inverters have to take input power from batteries making the system more complex and less efficient. Off-grid CyboInverters offer a flexible, scalable, cost-effective, battery-less, or battery-enabled off-grid solar solution to meet the needs of a broad range of users, especially those living without access to grid power.
On/Off-Grid CyboInverters
The On/Off-Grid CyboInverters are very useful in areas where the electric grid is unstable or bad weather can take the grid down for days. They can be switched to off-grid mode automatically when the grid is down to run critical loads such as a TV, computer, refrigerator, and phone chargers.
Business Opportunity
CyboInverter's unique capabilities and features are ideal for strategic partners, private-label partners, and solar integrators to offer unique and cost-effective systems and solutions by incorporating CyboInverters as a core element for a wide range of solar and renewable energy applications including the ones listed in the table above.
|
|
