Inverter-Air-Conditioners (IAC) are becoming more popular. They can start with small amounts of surge power; therefore, our special off-grid CyboInverters can run these air conditioners with just solar panels. No battery is required. Off-grid solar air-conditioning has huge market potential in parts of the world where the electric grid is poor or there is no electricity.

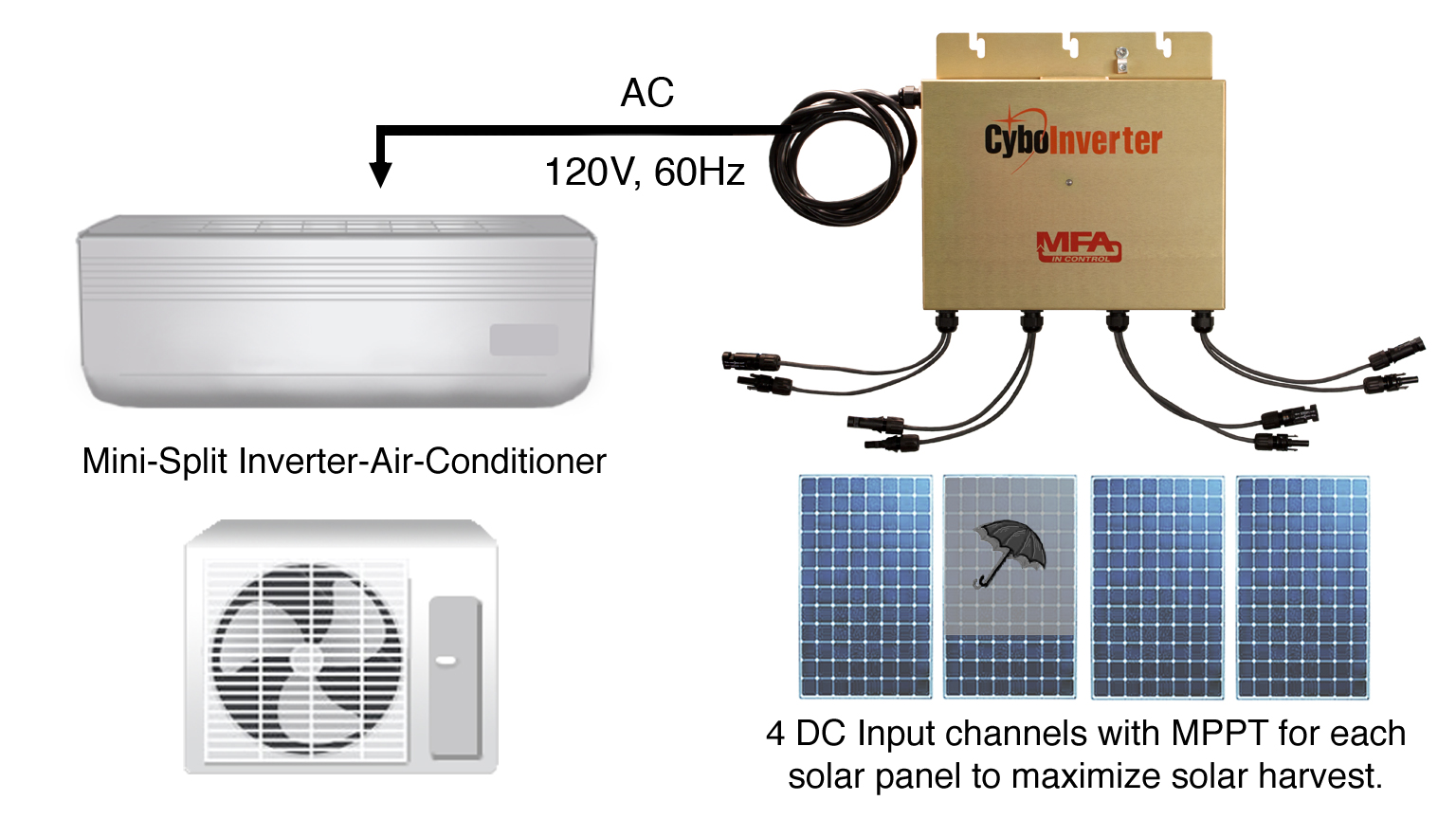

The graphic above shows a 4-channel 1.2KW off-grid CyboInverter that directly connects to four 250W to 330W solar panels with MC-4 connectors. It can run a 9000 to 12000 Btu IAC. The graphic below shows an off-grid CyboInverter Twin-Pack that connects to eight solar panels and can run an 18000 to 24000 Btu IAC or multiple smaller IACs. Solar panels and CyboInverters can be installed on the roof with "plug-and-play" installation. The AC output wire runs down to connect to the IAC. Since the system is so simple and easy to install, the total system cost is affordable, especially as the solar panel price has dropped substantially. Most off-grid inverters on the market require batteries to operate. This battery-less solar air conditioning system is unique, cost effective, and can work in high temperature and high humidity areas.
The following table lists the off-grid and on/off-grid CyboInverters that are specially designed to run Inverter-Air-Conditioners with different AC standard around the world. CyboInverters are patented, UL1741 certified, NEMA 6 rated, and made in the USA.
Type
Model
AC Output
Region
Off-Grid
CIM-1000Nx
120V, 60Hz
USA, Canada, Mexico
Off-Grid
CIM-1000Rx
230V, 60Hz
USA, Canada, Mexico
Off-Grid
CIM-1000Sx
220V, 50Hz
China, Most Asian Countries
Off-Grid
CIM-1000Tx
230V, 50Hz
Europe, India, Most African Countries
Off-Grid
CIM-1000Wx
220V, 60Hz
Brazil, Peru, Philippines, Saudi Arabia
On/Off-Grid
CIM-1200A/Rx
240V / 230V, 60Hz
USA, Canada, Mexico
The On/Off-Grid CyboInverter listed on the table is useful in areas where the electric grid is unstable or poor weather conditions can take the grid down for days. It can be switched to off-grid mode automatically when the grid is down to run an IAC, lights, fans, and phone chargers.
