On/Off-Grid CIM-1200A/N |
|
|
|
|
|
|
|
|
|
 |
- On-Grid or Off-Grid Mode
- Specially Designed to Provide Backup Power when the Grid is Down
- Four DC Input Channels for Solar, Battery, or Wind Input
- Over Discharge Protection for 48V Lead-Acid Batteries
- Pure Sinewave AC Output
- MPPT for Each Solar Panel
- Outdoor or Indoor Mounting
- Made in U.S.A
|
|
|
|
|
|
Each CyboInverter (CIM-1200A/N) can connect to four solar, battery, or wind DC sources and produce 1150W, 240V, 60Hz AC to the grid when grid is on, or 120V AC to an off-grid circuit to run AC loads.
|
|
|
|
|
|
 |
|
|
When the grid is on, the inverter works like a regular on-grid inverter that meets UL1741 and IEEE1547 standards including: over and under voltage shutdown; over and under frequency shutdown; and anti-islanding.
When the grid is down, the inverter will shutdown immediately and then send a test signal from its off-grid output port to check the status of the connected off-grid AC circuit. If there is no AC present and an AC load is detected, it will generate AC to power the load.
In the off-grid mode, when the inverter detects the grid is back on, it will stop powering the load. After a 5-minute UL mandatory wait, the inverter will send AC power to the grid again.

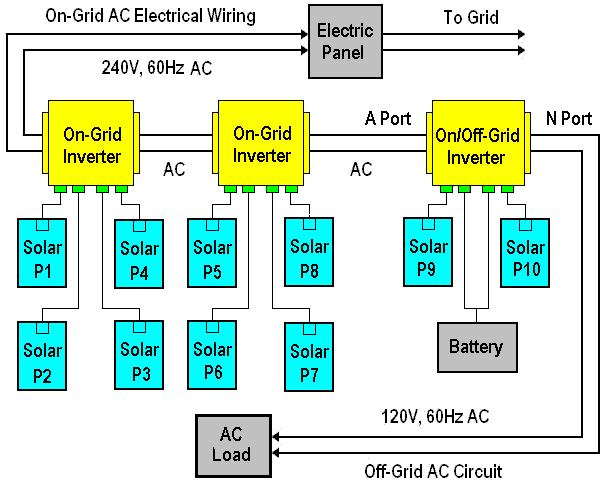

The drawing shows 2 on-grid and 1 on/off-grid CyboInverters daisy-chained as a group. |
|
|
|
|
|
|
|
|
4 Channel 1.2KW On/Off-Grid CyboInverter for Solar, Wind, & Battery Part No: CIM-1200A/N Maximum CyboInverters per 20A Branch Circuit: 3-4 |
|
|
|
|
|
|
|
|
