On/Off-Grid Overview

  Climate change is becoming more catastrophic and power grid shutdowns are more frequent and severe. On-grid inverters are designed to deliver power to the grid but cannot run as off-grid inverters to power AC loads, yet off-grid inverters cannot send power to the grid when the grid is on so the solar energy is wasted. CyboEnergy has combined both functions in one inverter to offer grid flexibility.

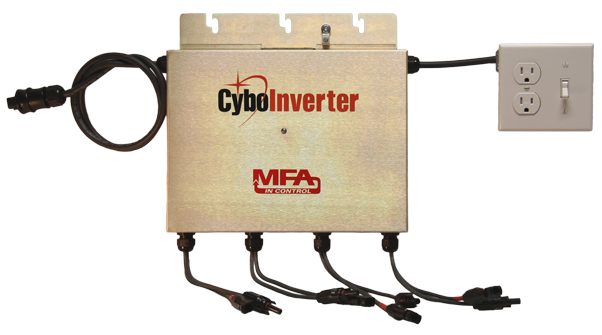

The following graphic shows a 4-channel 1.2KW On/Off-Grid CyboInverter that has an on-grid AC output port and an off-grid AC output port. Each inverter has four input channels that can connect to four 300W DC sources including solar panels, wind generators, hydro-generators, or batteries and produce 1150W AC peak power. Each input channel has its own control and MPPT to eliminate solar partial shading problems and maximize power production. The product is patented, UL1741 certified, and made in the USA.


During normal operating conditions when the grid is on, the On/Off-Grid CyboInverter works like a regular on-grid inverter that meets all UL1741 requirements including: over or under voltage shutdown; over or under frequency shutdown; and anti-islanding. When the grid is down, the inverter will shutdown immediately based on the UL safety rules. After a few seconds, the inverter will automatically switch to off-grid mode to support an off-grid AC circuit and power AC loads such as lights, fans, TV, computers, phone-chargers, and small refrigerators. When the grid returns, the inverter will switch to on-grid mode and send power to the grid.

Using the On/Off-Grid CyboInverter, the same solar power system can generate power to the grid and can also be a power backup system when the grid is down. For ease of installation, it can daisy-chain with multiple On-Grid CyboInverters. In addition, the unique multiple input channel design of the CyboInverter product family offers seamless integration of renewable energy sources, including solar, wind, fuel-cell, hydro, and batteries where energy storage is desirable. The On/Off-Grid CyboInverter can significantly improve the usefulness of solar power systems and make them more competitive compared with fossil fuel and other types of renewable energy, resulting in better return-on-investment (ROI) and faster adoption of solar energy in the global market.

The following diagram shows the system of using an On/Off-Grid CyboInverter A/H Model Twin Pack with 8 solar panels. In the On-Grid Mode, the system generates up to 2.3KW AC power to be sent to the electric grid through its A Output Port. The system can also be automatically or manually switched to its Off-Grid Mode, where the system generates AC to power an electric water heater or heating elements for Solar PV Heating through its H Output Port.
