Off-Grid CIM-1200N |
|
|
| |
|
|
| |
|
|
| |
 |
- Pure Sinewave AC Output
- For Lights, Fans, TV, PC, Battery Chargers, Refrigerators, Food Processors, Small Appliances, etc.
- Total of 4 DC Input Channels
- MPPT for Each Solar Panel
- Over Discharge Protection for 48V Lead-Acid Batteries
- Solar or Battery Auto-Detection
- High Efficiency and Long Life
- Made in U.S.A
|
|
| |
|
|
| |

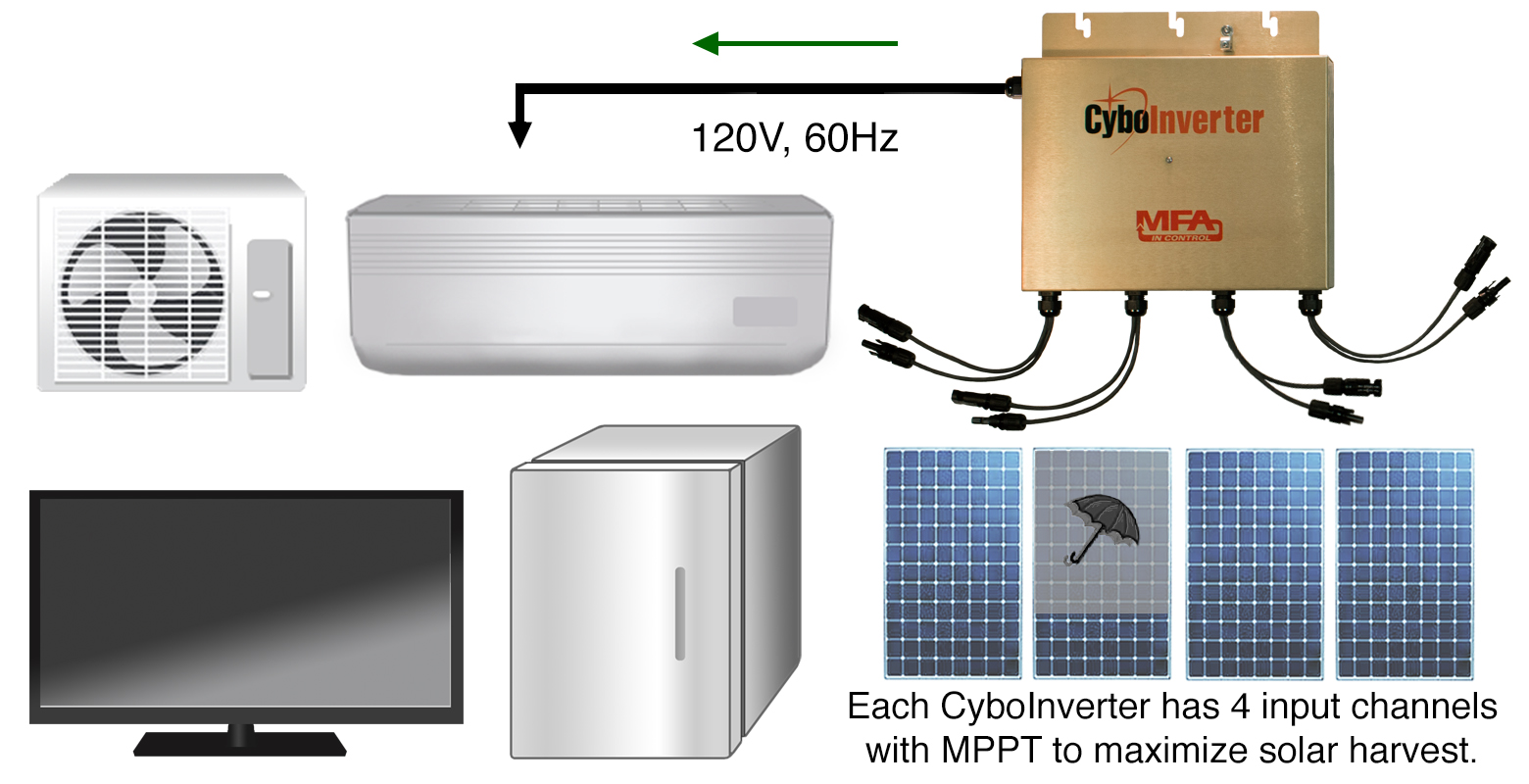

An off-grid CyboInverter can work in harsh environments. It has 4 input channels to connect to solar panels with MPPT for each panel to maximize solar production. All input channels can connect to solar panels or batteries with plug-and-play installation. Each 48V battery can connect to 1, 2, 3, or 4 channels in parallel. The system can produce up to 1250W, 120V, 60Hz AC to power AC loads, ideal for a mobile micro-grid.
Key Benefits: When there is sufficient solar power to run the loads, the CyboInverters will not pull power from the battery. This ensures a much longer battery life. |
|
| |
|
|
| |
|
Q: What is your special offer? |
 |
| A: We enable you to run AC loads with solar panels only. No battery
is required. |
| Q: Really, no batteries? How? |
| A: Off-Grid CyboInverters can take power from solar panels directly. |
| Q: That is great. If needed, can I add batteries to run loads at night? |
| A: Yes, You may use a 48V battery to connect to 2 input channels of the
CyboInverter. |
|
|
| |
|
|
| |
|
|
| |

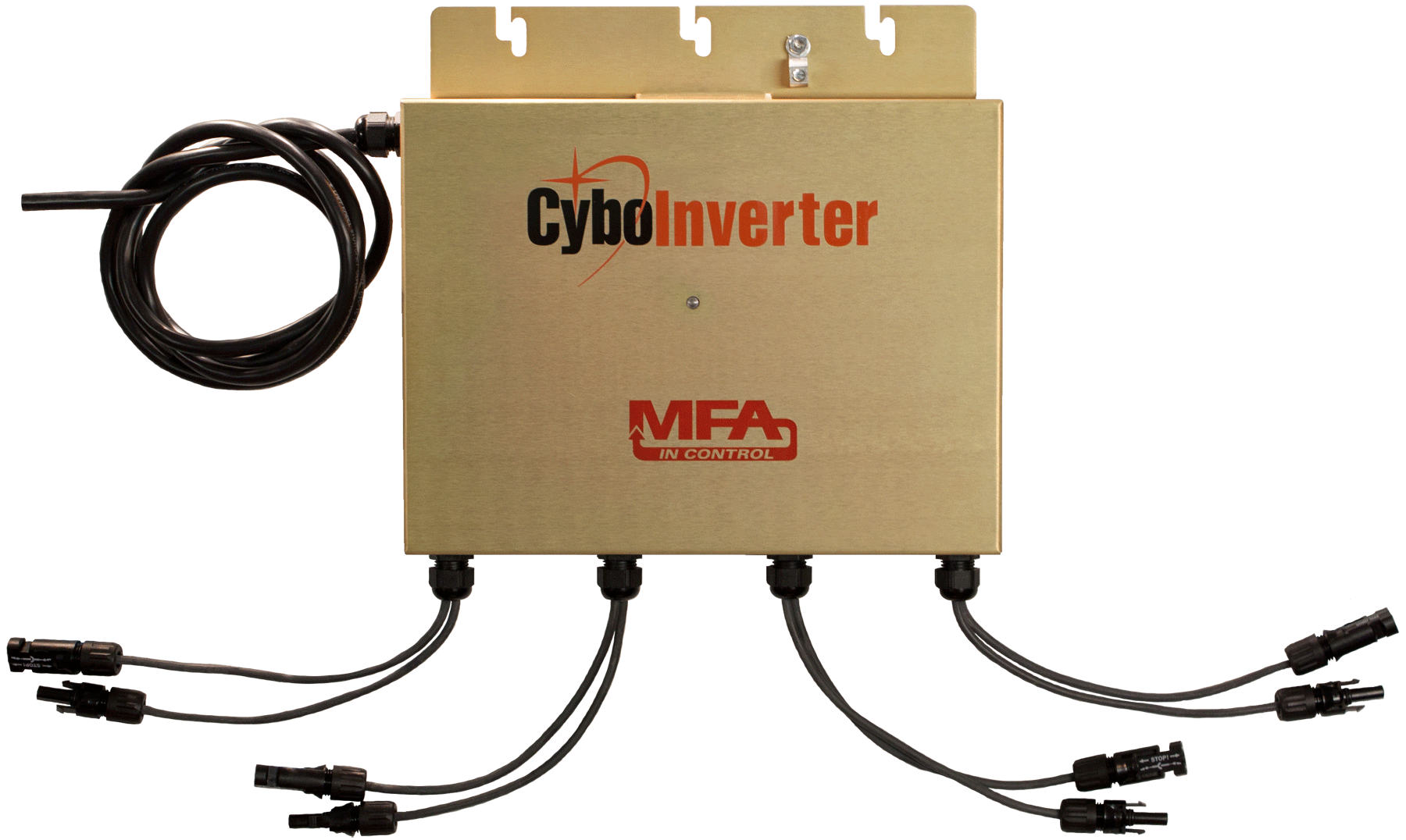

CyboInverter: 4 Channel 1.2KW Off-Grid Solar Power Mini-Inverter
Part No: CIM-1200N, Standalone Off-Grid CyboInverter N Model |
|
| |
|
|
| |
*WARNING: Never connect the Off-Grid CyboInverter to the AC Grid. Doing so will damage the unit and void the warranty. Check motor voltage and current specs before attaching. |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
