CyboBridge: CyboInverter Monitoring |
|
| |
|
|
| |
 |
- Powerline Communication gateway with PC or Router based options.
- CyboPower software and web pages to monitor the status and power production of CyboInverters in real-time.
- Can be viewed by wireless devices such as smartphones and tablets.
- Panel level diagnosis and historical data available.
- Each on-grid CyboInverter system needs only one CyboBridge to communicate with the outside world.
- Compatible with all CyboInverter Grid-Interactive models.
|
|
|
| |

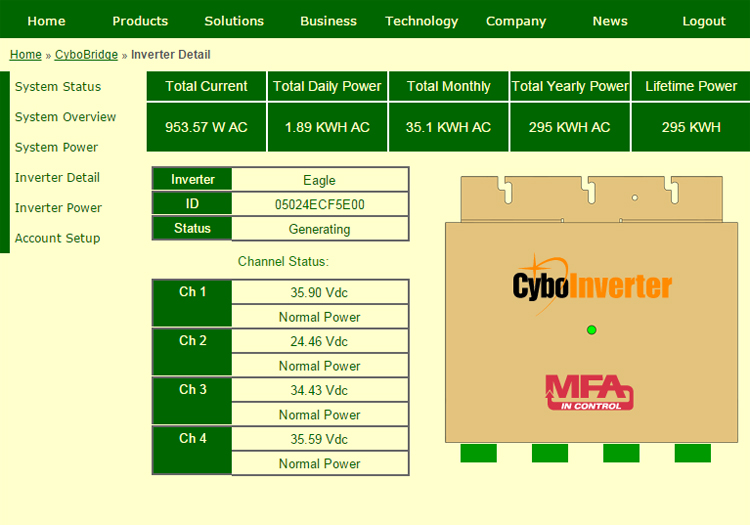

| Inverter Detail |

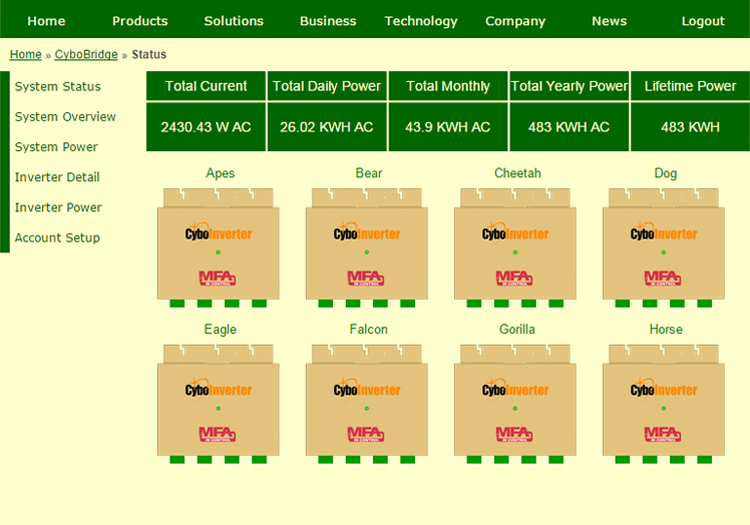

System Overview |
|
|

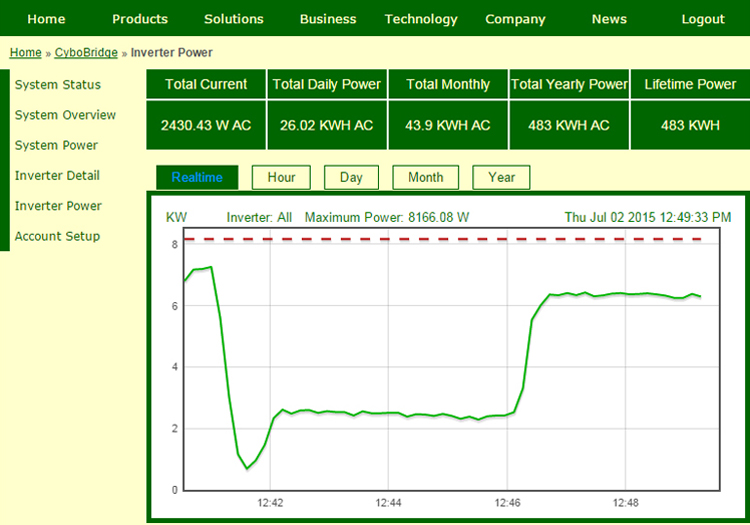

| Inverter Realtime Power |

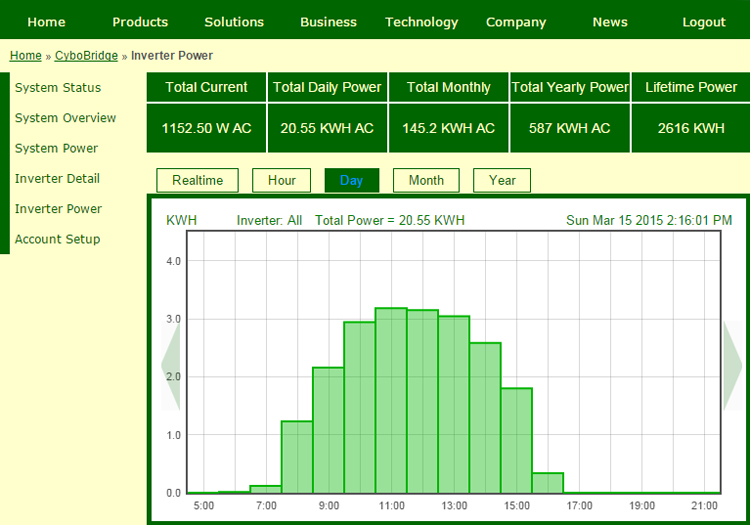

Inverter Daily Power |
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |

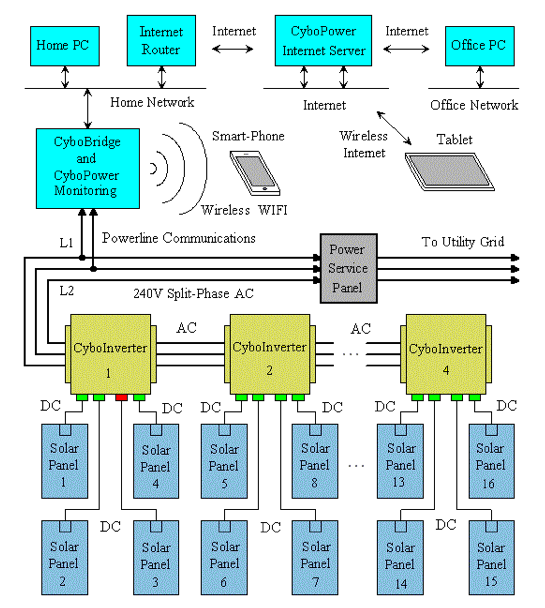

CyboBridge Powerline Communication & Monitoring System |
|
| |
|
|
| |
 |
|
| |
|
|
| |
| Product |
PN |
Description |
What is Included |
Picture |
| CyboBridge |
CB-01 |
Router-based Communication Gateway Device |
1. A router made by ASUS with embedded CyboBridge and CyboPower software;
2. Echelon U20 powerline USB adaptor. |
 |
| CyboBridge Lite |
CB-02 |
PC-based Communication Gateway Device |

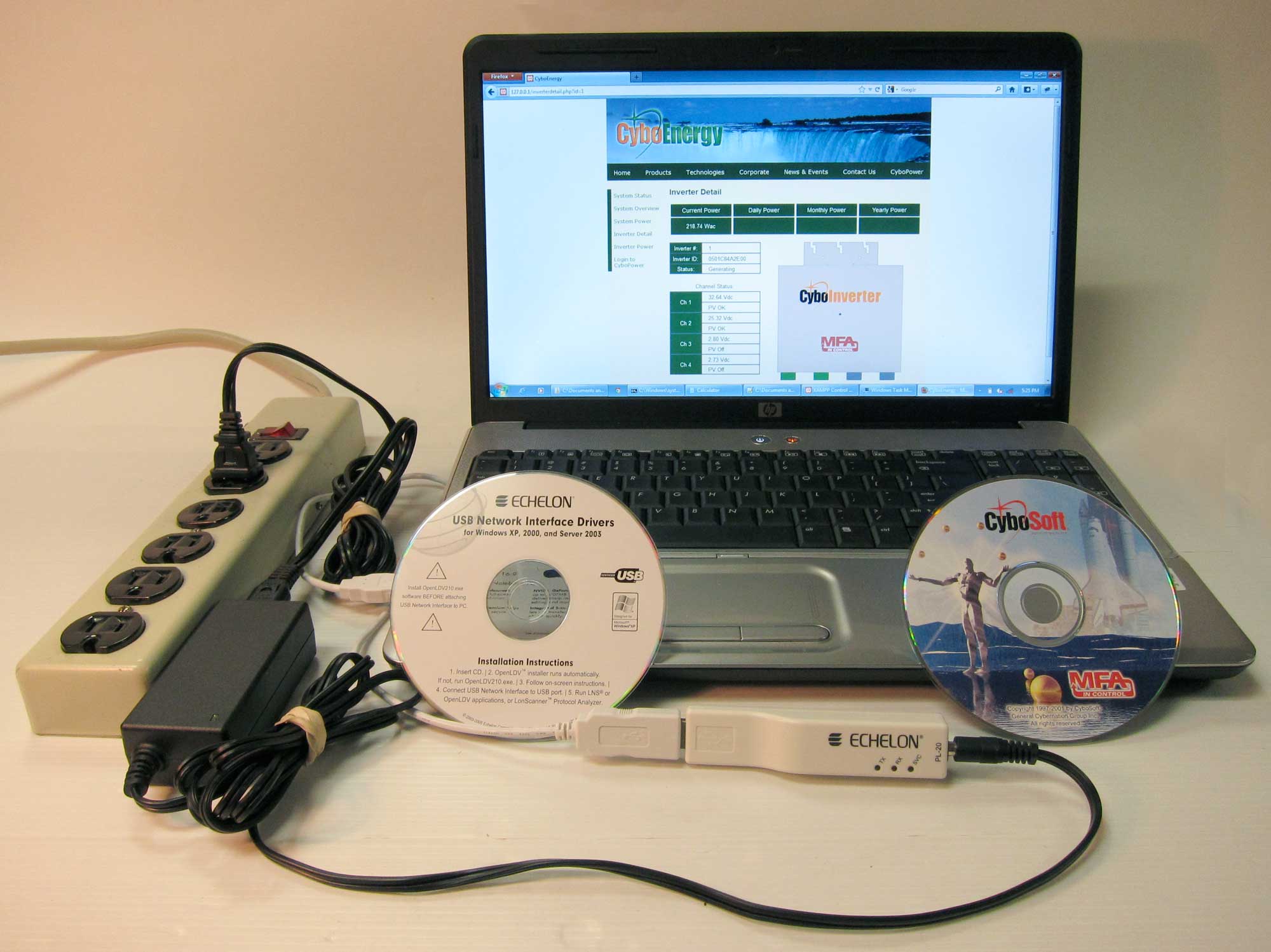

1. CyboBridge and CyboPower software for Windows PC in a CD;
2. Echelon U20 powerline USB adaptor with CD. |
 |
|
|
| |
|
|
